Ohm's Law: Voltage, Current, and Resistance Comprehensive Guide

1. Introduction

From the smartphone powering your daily communications to the electric vehicle navigating highway traffic and the microscopic microprocessors executing billions of computations each second, modern civilization operates entirely on electric charge in motion.

At the foundational bedrock of all electrical engineering and physics lies a single, elegant mathematical relationship: Ohm's Law. Formulated in the early 19th century, Ohm's Law describes the precise quantitative interrelationship between Voltage (the electrical driving force), Current (the rate of charge flow), and Resistance (the opposition to that flow).

graph LR
    V["⚡ Voltage (V)
Potential Difference (Volts)"] -->|"Drives Charge Through"| C["🔄 Circuit Conductor / Load"]
    R["🛑 Resistance (R)
Opposition to Flow (Ohms Ω)"] -->|"Restricts Flow Rate"| C
    C -->|"Determines"| I["🌊 Electric Current (I)
Rate of Flow (Amperes A)"]

Mastering Ohm's Law enables engineers, electricians, students, and hobbyists to:

• Accurately size electrical wires and prevent catastrophic overheating or electrical fires.

• Determine the correct bias resistors for delicate semiconductors, LEDs, and sensor circuits.

• Calculate electrical power consumption ($P$) and thermal dissipation across electronic components.

• Troubleshoot, diagnose, and repair complex direct current (DC) and alternating current (AC) electronic systems.

In this comprehensive guide, we unpack every dimension of Ohm's Law—exploring its physical definitions, intuitive hydraulic analogies, historical development, mathematical derivations, step-by-step calculations, and real-world industrial case studies.

2. Definition of Ohm's Law

2.1 The Simple Definition

In simple terms, Ohm's Law states that the amount of electric current passing through a conductor between two points is directly proportional to the voltage applied across the two points, and inversely proportional to the resistance of the conductor between them.

If you double the voltage (push), you double the electric current (flow), provided the resistance stays constant. Conversely, if you double the resistance (blockage), the current is cut in half for the same voltage.

2.2 The Formal Technical Definition

Formally, for a purely ohmic conductor at constant physical temperature and uniform geometry:

"The steady electric current ($I$) flowing through an isotropic conductor is directly proportional to the electrical potential difference ($V$) maintained across its ends, provided the physical state, mechanical strain, and temperature of the conductor remain invariant."

Mathematically expressed as:

At the microscopic field level (differential form in electrodynamics):

Where:

• $\mathbf{J}$ is the current density vector ($\text{A/m}^2$),

• $\sigma$ is the material's microscopic electrical conductivity ($\text{S/m}$ or $\Omega^{-1}\cdot\text{m}^{-1}$),

• $\mathbf{E}$ is the applied electric field vector ($\text{V/m}$ or $\text{N/C}$).

2.3 The Hydraulic (Water Pipe) Analogy

To build an instinctive mental model, consider water circulating through a closed piping system:

graph TD
    subgraph Hydraulic_Model ["💧 Hydraulic System"]
        Pump["Elevated Water Tank / Pump
(Water Pressure = Voltage)"]
        Flow["Water Flow Rate (Gallons/Min)
(Volume Rate = Current)"]
        Constriction["Narrow Pipe / Constriction Valve
(Friction Restriction = Resistance)"]
        Pump -->|"Forces Water"| Flow
        Flow -->|"Flows Through"| Constriction
    end

    subgraph Electric_Model ["⚡ Electrical System"]
        Battery["DC Battery / Power Supply
(Potential Difference = Volts)"]
        Amps["Electric Current (Coulombs/Sec)
(Charge Rate = Amperes)"]
        Resistor["Resistor / Heating Element
(Collision Opposition = Ohms)"]
        Battery -->|"Forces Charge"| Amps
        Amps -->|"Passes Through"| Resistor
    end

1. Voltage ($V$) $\rightarrow$ Water Pressure: The height of the water tower or pressure generated by a pump. Greater height produces higher potential energy to drive water through the pipe.
2. Current ($I$) $\rightarrow$ Flow Rate: The actual volume of water passing a cross-section per second (e.g., liters per minute).
3. Resistance ($R$) $\rightarrow$ Pipe Narrowness: A narrow nozzle, constriction valve, or rough inner pipe wall that impedes the water flow.

3. Historical Background & Evolution

timeline
    title Milestones in Ohm's Law & Circuit Theory
    1800 : Alessandro Volta invents the Voltaic Pile (First continuous DC source)
    1827 : Georg Simon Ohm publishes 'Die galvanische Kette, mathematisch bearbeitet'
    1845 : Gustav Kirchhoff formulates Current & Voltage Laws (KCL & KVL)
    1881 : International Congress of Electricians officially adopts 'Ohm' & 'Volt'
    1900 : Paul Drude publishes the Classical Electron Drift Model of Conduction
    1947 : Invention of the Point-Contact Transistor (Non-Ohmic Solid-State Era)

• Origin (1827): German physicist and mathematician Georg Simon Ohm (1789–1854) conducted exhaustive empirical experiments using thermocouple circuits (to maintain stable voltage) and torsional balances to measure magnetic deflection caused by current.

• Initial Skepticism: Upon publishing his landmark treatise Die galvanische Kette, mathematisch bearbeitet (The Galvanic Circuit Investigated Mathematically), his findings were initially rejected by the German Minister of Education as "heretical" and unscientific, costing Ohm his teaching professorship.

• Vindication & Standardization: British physicists, including Michael Faraday and the Royal Society of London, recognized his genius in 1841, awarding him the Copley Medal. In 1881, the International Electrical Congress formally named the SI unit of electrical resistance the Ohm ($\Omega$) in his honor.

4. Core Concepts Explained

4.1 Voltage ($V$ or $E$)

• Definition: Electrical potential difference between two distinct points in a circuit; the work required to move a unit positive charge from one point to another.

• Unit: Volt ($\text{V}$), where $1\text{ V} = 1\text{ Joule per Coulomb } (1\text{ J/C})$.

• Physical Meaning: Voltage is the electromotive force (EMF) that accelerates free electrons through a conductive lattice against atomic lattice collisions.

4.2 Electric Current ($I$)

• Definition: The quantitative rate at which electric charge traverses a specified cross-sectional area per unit time.

• Unit: Ampere ($\text{A}$), where $1\text{ A} = 1\text{ Coulomb per second } (6.242 \times 10^{18}\text{ electrons/s})$.

• Conventional vs. Electron Flow:
  - Conventional Current: Directs from positive (+) potential to negative (-) potential (standardized in engineering diagrams).
  - Electron Flow: Actual subatomic physical transport of negatively charged electrons traveling from negative (-) toward positive (+) terminals.

4.3 Electrical Resistance ($R$)

• Definition: The intrinsic physical opposition a material offers to the continuous flow of electric current.

• Unit: Ohm ($\Omega$), where $1\ \Omega$ allows $1\text{ Ampere}$ of current to flow when subjected to $1\text{ Volt}$ of potential difference.

• Governing Factors (Pouillet's Law):

Where:

• $\rho$ = Material resistivity ($\Omega\cdot\text{m}$)

• $L$ = Length of the conductor ($\text{m}$)

• $A$ = Cross-sectional area ($\text{m}^2$)

4.4 Electrical Power & Joule Heating ($P$)

Whenever current traverses a resistive medium, electrical energy converts irreversibly into thermal kinetic energy (heat). Combining Ohm's Law with Joule's Law yields the complete Power Matrix:

• Unit: Watt ($\text{W}$), where $1\text{ W} = 1\text{ Joule/second}$.

5. The Formula Wheel & Calculation Matrix

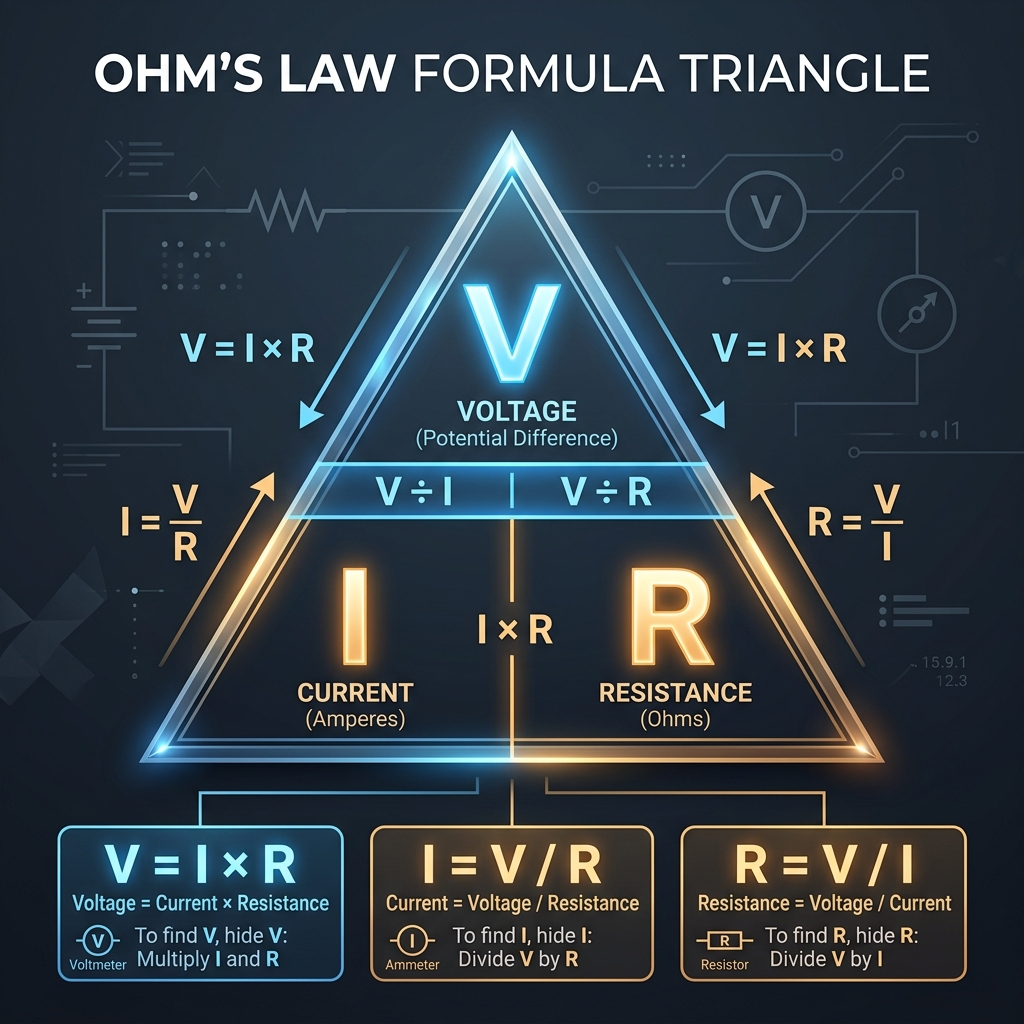

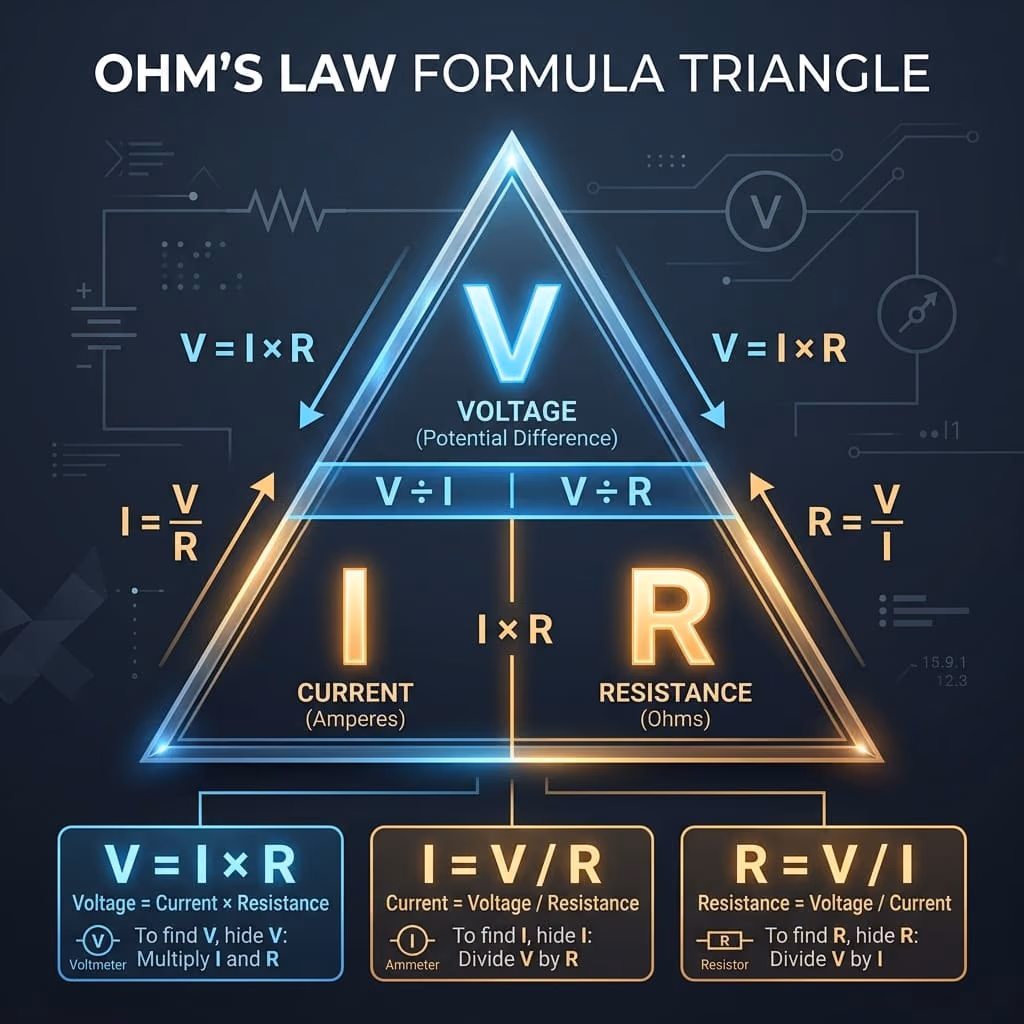

The classic Ohm's Law Wheel combines the four intertwined parameters: Voltage ($V$), Current ($I$), Resistance ($R$), and Power ($P$).

6. Step-by-Step Calculation Guide

When solving any Ohm's Law problem, follow this structured 4-step engineering protocol:

flowchart TD
    S1["Step 1: Identify Knowns & Unknowns
(e.g., V = 12V, R = 4Ω, Find I)"] --> S2["Step 2: Convert to Standard SI Units
(mA -> A, kΩ -> Ω, mV -> V)"]
    S2 --> S3["Step 3: Select the Appropriate Formula
(I = V / R)"]
    S3 --> S4["Step 4: Compute & Verify Physical Limits
(Calculate I and check component wattage rating)"]

7. Practical Real-World Examples

Example 1: Calculating Current in an Automotive Headlight

• Scenario: A 12-Volt vehicle battery powers a quartz-halogen headlight bulb with an operating resistance of $2.4\ \Omega$.

• Calculation:
  $$I = \frac{V}{R} = \frac{12\text{ V}}{2.4\ \Omega} = 5.0\text{ Amperes}$$

• Power Dissipation:
  $$P = V \times I = 12\text{ V} \times 5.0\text{ A} = 60\text{ Watts}$$

Example 2: Sizing a Current-Limiting Resistor for an LED

• Scenario: An engineer needs to power an indicator LED ($V_f = 2.0\text{ V}$, $I_{\text{target}} = 20\text{ mA} = 0.020\text{ A}$) from a $5.0\text{ V}$ micro-controller rail.

• Voltage drop across resistor:
  $$V_R = V_{\text{supply}} - V_f = 5.0\text{ V} - 2.0\text{ V} = 3.0\text{ V}$$

• Required Resistance:
  $$R = \frac{V_R}{I} = \frac{3.0\text{ V}}{0.020\text{ A}} = 150\ \Omega$$

• Power Rating Needed:
  $$P_R = I^2 R = (0.020)^2 \times 150 = 0.060\text{ W} \implies 60\text{ mW}$$
  (A standard $1/4\text{ W} = 250\text{ mW}$ resistor provides safe thermal margin).

Example 3: Finding Voltage Drop across Long Transmission Cable

• Scenario: An industrial pump draws $15\text{ A}$ through copper wiring with total loop resistance of $0.8\ \Omega$.

• Voltage Drop ($V_{\text{drop}}$):
  $$V_{\text{drop}} = I \times R = 15\text{ A} \times 0.8\ \Omega = 12.0\text{ Volts}$$

• Cable Heat Loss:
  $$P_{\text{loss}} = I^2 R = (15)^2 \times 0.8 = 225 \times 0.8 = 180\text{ Watts}$$

Example 4: Calculating Resistance of an Electric Kettle Heating Coil

• Scenario: A household electric kettle is rated at $1800\text{ W}$ on a $120\text{ V}$ AC supply line.

• Equivalent Resistance:
  $$R = \frac{V^2}{P} = \frac{(120)^2}{1800} = \frac{14400}{1800} = 8.0\ \Omega$$

• Current Drawn:
  $$I = \frac{P}{V} = \frac{1800\text{ W}}{120\text{ V}} = 15.0\text{ Amperes}$$

Example 5: Determining Maximum Safe Voltage for a Precision Resistor

• Scenario: A high-precision $0.5\text{ Watt}$ carbon film resistor has a resistance of $10\text{ k}\Omega$ ($10,000\ \Omega$).

• Maximum Safe Continuous Voltage:
  $$V_{\max} = \sqrt{P \times R} = \sqrt{0.5 \times 10,000} = \sqrt{5000} \approx 70.71\text{ Volts}$$

8. Ohmic vs. Non-Ohmic Materials Comparison

Not every material obeys Ohm's Law. Materials and devices are categorized into Ohmic (linear $V$-$I$ curve) and Non-Ohmic (non-linear $V$-$I$ curve).

graph TD
    subgraph Materials ["Material Conduction Classification"]
        Ohmic["🟢 Ohmic Materials (Linear I-V)
• Copper & Silver wires
• Carbon film resistors
• Nichrome heating elements"]
        NonOhmic["🔴 Non-Ohmic Devices (Non-Linear I-V)
• Diodes & LEDs (exponential forward bias)
• Transistors (MOSFETs, BJTs)
• Incandescent tungsten filaments (thermal variation)
• Gas discharge lamps & ionized plasma"]
    end

9. Real-World Engineering Case Studies

Case Study 1: Solar Photovoltaic (PV) Cable Sizing & Efficiency

• Background: A $10\text{ kW}$ rooftop solar array operates at a nominal DC bus voltage of $400\text{ V}$, generating $25\text{ A}$ under peak solar irradiance. The cable run from the rooftop combiner box to the central inverter is $45\text{ meters}$ ($90\text{ m}$ round-trip loop length).

• Engineering Dilemma: Compare using standard $4\text{ mm}^2$ solar wire ($R_{\text{loop}} = 0.405\ \Omega$) vs. heavy-duty $10\text{ mm}^2$ solar wire ($R_{\text{loop}} = 0.162\ \Omega$).

• Analysis:
  - With $4\text{ mm}^2$ cable:
  - Voltage Drop = $25\text{ A} \times 0.405\ \Omega = 10.13\text{ V}$ (2.53% loss).
  - Power Lost to Thermal Dissipation = $I^2 R = (25)^2 \times 0.405 = 253.1\text{ Watts}$.
  - Annual Energy Lost (assuming 5.5 peak sun hours/day): $\approx 508\text{ kWh/year}$.
  - With $10\text{ mm}^2$ cable:
  - Voltage Drop = $25\text{ A} \times 0.162\ \Omega = 4.05\text{ V}$ (1.01% loss).
  - Power Lost to Thermal Dissipation = $(25)^2 \times 0.162 = 101.25\text{ Watts}$.
  - Annual Energy Lost: $\approx 203\text{ kWh/year}$.

• Result: Upgrading to $10\text{ mm}^2$ copper wire prevents over $305\text{ kWh}$ of lost renewable electricity annually, paying for the additional copper cost within 18 months while maintaining safety margins.

Case Study 2: Industrial Motor Control Center Ground Fault Protection

• Background: An industrial $480\text{ V}$ three-phase motor in a processing plant suffered internal insulation breakdown.

• Analysis: The grounding electrode system had deteriorated due to soil corrosion, exhibiting an abnormal resistance of $24\ \Omega$.

• Ohm's Law Verification:
  - When the $277\text{ V}$ phase-to-ground fault occurred:
  $$I_{\text{fault}} = \frac{V_{\text{phase}}}{R_{\text{ground}}} = \frac{277\text{ V}}{24\ \Omega} = 11.54\text{ Amperes}$$

• Because the fault current ($11.54\text{ A}$) was far below the trip threshold of the $100\text{ A}$ thermal-magnetic circuit breaker, the breaker never tripped!
  - The motor enclosure stayed continuously energized at dangerous voltage until human inspection.

• Remediation: Engineers drove auxiliary grounding rods, reducing total ground impedance to $1.2\ \Omega$, guaranteeing fault currents $>230\text{ A}$ to instantly trip overcurrent protection relays within $16\text{ ms}$.

10. Common Mistakes & How to Avoid Them

11. Frequently Asked Questions (FAQ)

Q1: Does Ohm's Law apply to AC (Alternating Current) circuits?

A: Yes, but resistance ($R$) is expanded to Impedance ($Z$), which accounts for frequency-dependent phase shifts from inductors and capacitors:

Q2: What happens if resistance is zero ($R = 0$)?

A: When $R \to 0$, current mathematically approaches infinity ($I = V/0 \to \infty$). In the physical world, this is a short circuit. Real-world batteries and wires have internal resistance, causing extreme current spikes, intense Joule heating, blown fuses, or fires unless protected by a breaker.

Q3: Why does a bird sitting on a high-voltage power line not get shocked?

A: The bird's two feet are perched on the same continuous conductor with negligible distance between them. The resistance of the wire segment between its feet is virtually zero ($\approx 0.0001\ \Omega$), meaning the voltage drop ($V = I \cdot R$) across its feet is a fraction of a millivolt. With almost no potential difference, virtually zero current traverses the high resistance of the bird's body.

Q4: What is the difference between EMF (Electromotive Force) and Potential Difference?

A: EMF is the energy per unit charge generated by an active source (such as a chemical battery, alternator, or solar cell) that converts non-electrical energy into electrical energy. Potential difference is the voltage drop that occurs between any two points as electrical energy is consumed across a passive circuit load.

Q5: How does temperature affect electrical resistance in metals vs. semiconductors?

A: - Metals (Positive Temperature Coefficient - PTC): As temperature increases, lattice vibrations (phonons) scatter free electrons more frequently, increasing resistance.

• Semiconductors (Negative Temperature Coefficient - NTC): As temperature rises, thermal excitation releases more electron-hole charge carriers across the bandgap, decreasing resistance.

Q6: Can Ohm's Law be applied to calculate human body electrical shock hazard?

A: Yes. The human body acts as a resistor (dry skin $\approx 10,000\ \Omega \text{ to } 100,000\ \Omega$; wet/punctured skin $\approx 1,000\ \Omega$). At $120\text{ V}$, wet skin allows $I = 120\text{ V} / 1000\ \Omega = 120\text{ mA}$, which exceeds the threshold for ventricular fibrillation ($50\text{-}100\text{ mA}$).

Q7: What is internal resistance in batteries?

A: Every real battery has inherent internal resistance ($r$) caused by chemical electrolyte viscosity and terminal contacts. The terminal voltage under load drops according to:

Q8: What is superconductivity in relation to Ohm's Law?

A: Superconductors are quantum materials cooled below a critical transition temperature ($T_c$) where electrical resistance drops strictly to zero ($R = 0.0000000\ \Omega$). In superconductors, persistent currents can circulate indefinitely without any driving voltage.

12. Summary & Key Takeaways

• Fundamental Formula: $V = I \times R$, where $V$ is in Volts ($\text{V}$), $I$ in Amps ($\text{A}$), and $R$ in Ohms ($\Omega$).

• Direct & Inverse Proportionalities: Current scales linearly with Voltage ($I \propto V$) and inversely with Resistance ($I \propto 1/R$).

• Power Coupling: Electrical energy transformed into heat/work obeys $P = V \times I = I^2 R = V^2 / R$.

• Applicability: Applies strictly to linear Ohmic materials at constant temperature; non-linear components (diodes, transistors, thermistors) require dynamic impedance calculations.
